Descripción

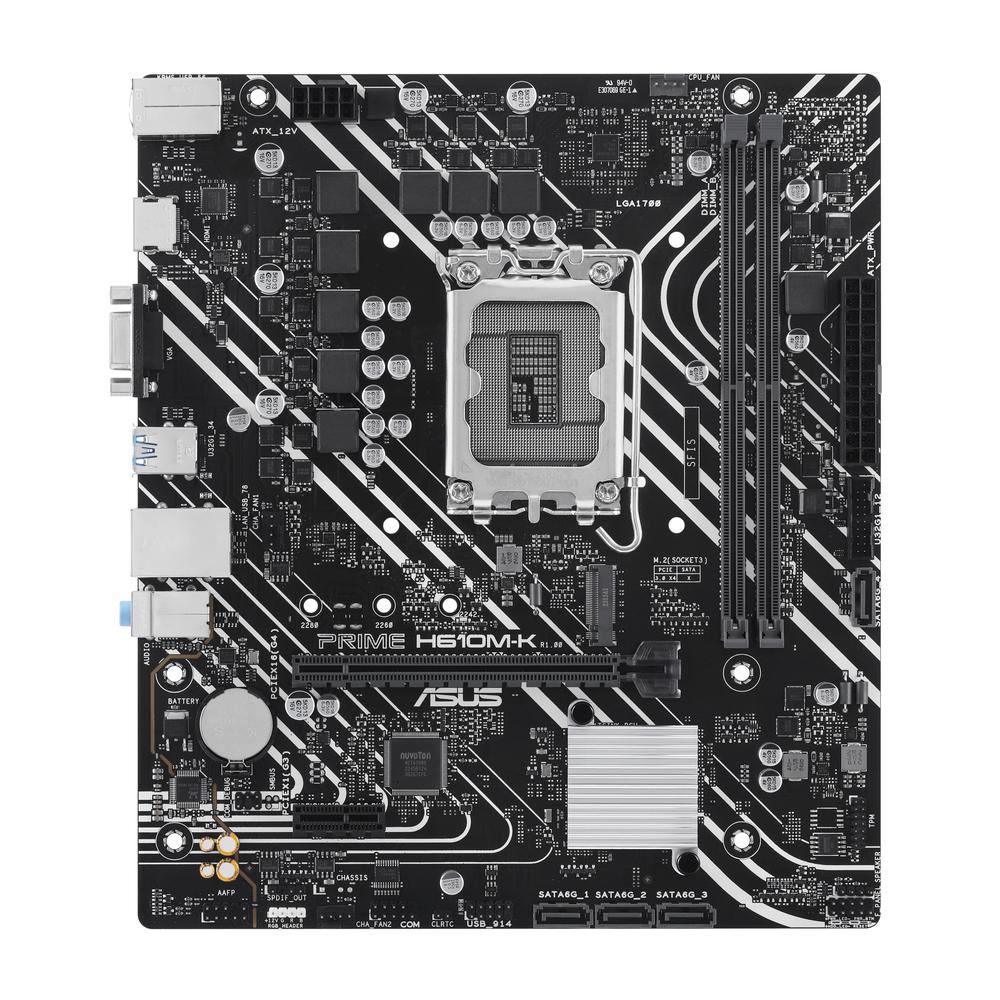

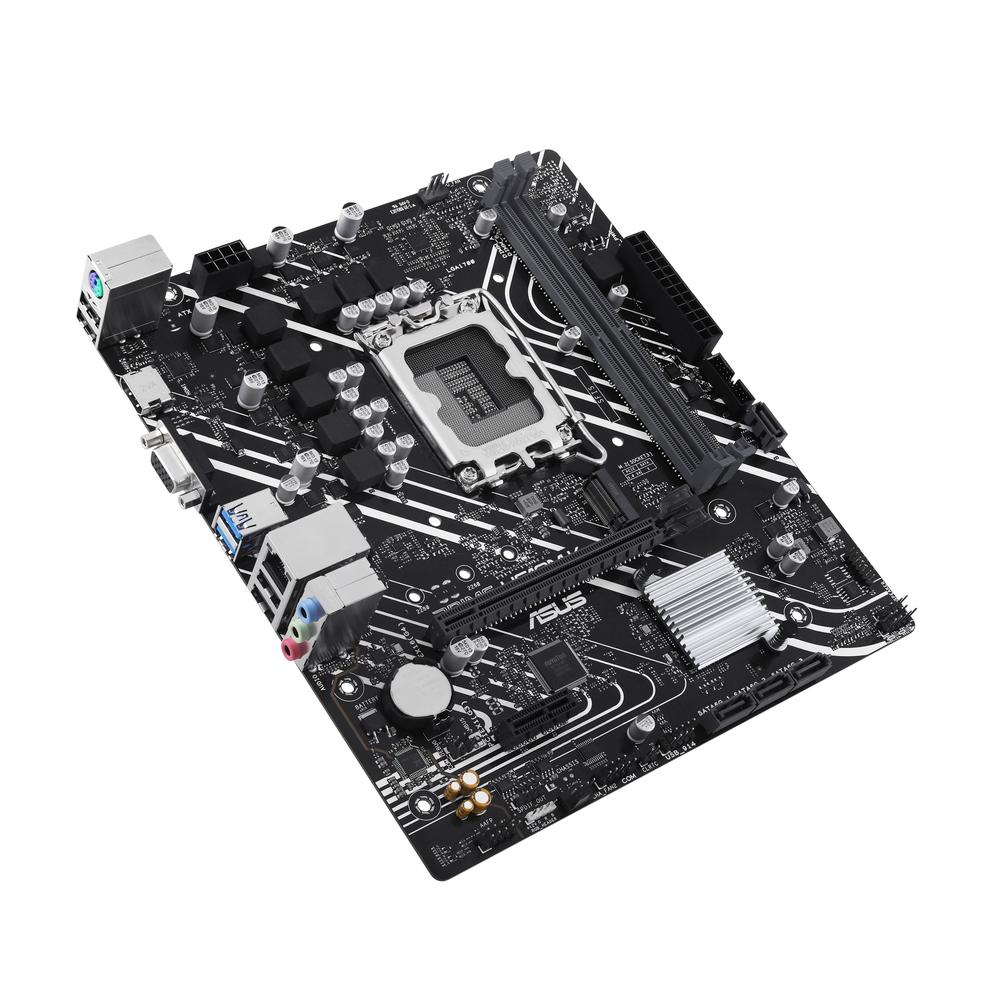

Asus prime h610m – k. fabricante de procesador: intel – socket de procesador: lga 1700 – procesador compatible: intel celeron – intel core i3 – intel core i5 – intel core i7 – intel core i9 -…. tipos de
memoria compatibles: ddr5 – sdram – memoria interna máxima: 96 gb – tipo de ranuras de memoria: dimm. interfaces de disco de almacenamiento soportados: m.2 – sata iii – tipos de unidades de
almacenamiento admitidas: hdd & ssd. conector usb: usb tipo a. tipo de interfaz ethernet: gigabit ethernet

cpu
intel socket lga1700 for intel core 14th & 13th gen processors – intel core 12th gen – pentium gold and celeron processors*
supports intel turbo boost technology 2.0 and intel turbo boost max technology 3.0**
* refer to www.asus.com for cpu support list.
** intel turbo boost max technology 3.0 support depends on the cpu types.
chipset
intel h610 chipset
memoria
2 x dimm slots – max. 96gb – ddr5 5600 – 5400 – 5200 – 5000 – 4800 non – ecc – un – buffered memory*
dual channel memory architecture
supports intel extreme memory profile (xmp)
* supported memory types – data rate (speed) – and number of dram modules vary depending on the cpu and memory configuratión – for more informatión please refer to cpu – memory support list under the
support tab of product informatión site or visit https: – – www.asus.com – support – .
* non – ecc – un – buffered ddr5 memory supports on – die ecc functión.
gráficos
1 x vga port
1 x hdmi port**
* graphics specificatións may vary between cpu types. please refer to www.intel.com for any updates.
** supports 4k@60hz as specified in hdmi 2.1.
ranuras de expansión
intel core processors (14th & 13th & 12th gen)
1 x pcie 4.0 x16 slot
intel h610 chipset
1 x pcie 3.0 x1 slot
– to ensure compatibility of the device installed – please refer to https: – – www.asus.com – support – for the list of supported peripherals.
almacenamiento
total supports 1 x m.2 slot and 4 x sata 6gb – s ports
intel h610 chipset
m.2 slot (key m) – type 2242 – 2260 – 2280 (supports pcie 3.0 x4 mode)
4 x sata 6gb – s ports
ethernet
1 x realtek 1gb ethernet
usb
rear usb (total 6 ports)
2 x usb 3.2 gen 1 (5g) ports (2 x type – a)
4 x usb 2.0 ports (4 x type – a)
front usb (total 4 ports)
1 x usb 3.2 gen 1 (5g) header supports 2 additiónal usb 3.2 gen 1 ports
1 x usb 2.0 header supports 2 additiónal usb 2.0 ports
audio
realtek 7.1 surround sound high definitión audio codec*
– supports: jack – detectión – multi – streaming – front panel jack – retasking
– supports up to 24 – bit – 192 khz playback
audio features
– audio shielding
– premium audio capacitors
– dedicated audio pcb layers
* a chassis with an hd audio module in the front panel is required to support 7.1 surround sound audio output.

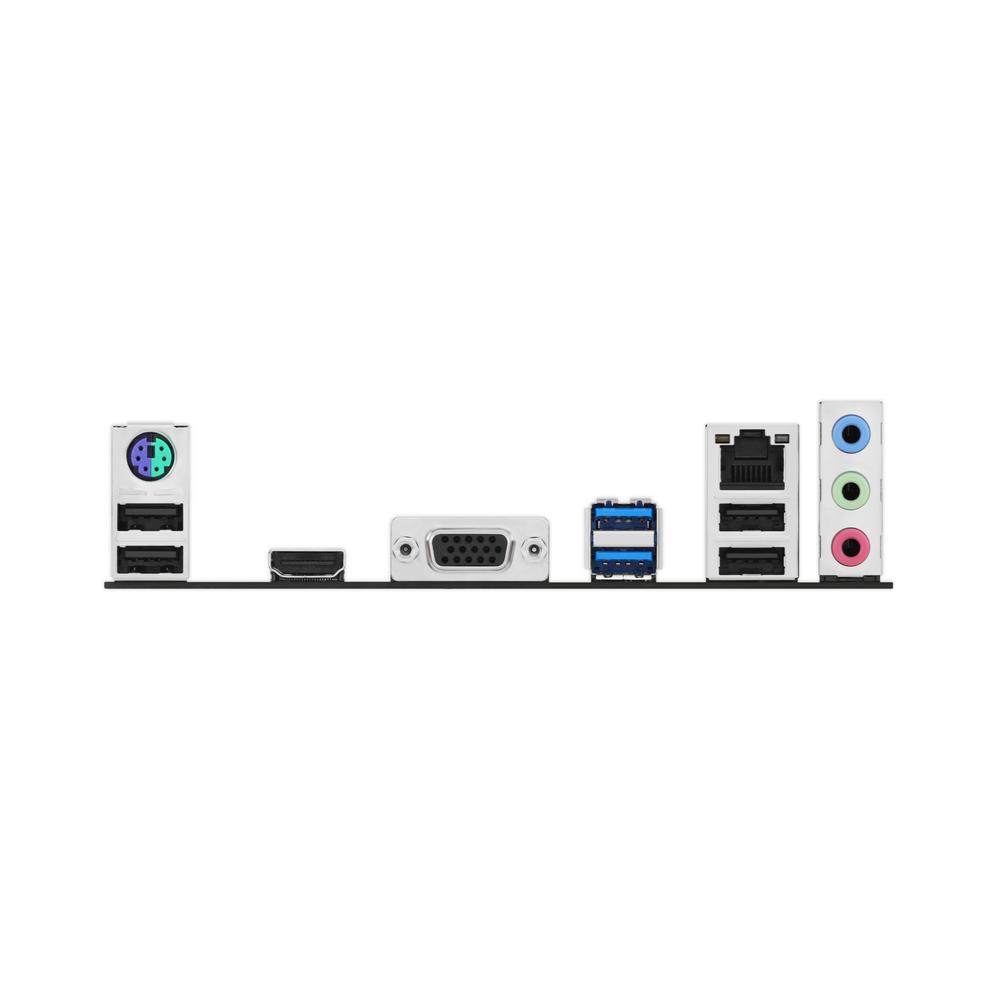

puertos de e – s del panel posterior
2 x usb 3.2 gen 1 (5g) ports (2 x type – a)
4 x usb 2.0 ports (4 x type – a)
1 x vga port
1 x hdmi port
1 x realtek 1gb ethernet port
3 x audio jacks
1 x ps – 2 keyboard – mouse combo port
conectores de e – s internos
fan and cooling related
1 x 4 – pin cpu fan header
2 x 4 – pin chassis fan headers
power related
1 x 24 – pin main power connector
1 x 8 – pin +12v power connector
storage related
1 x m.2 slot (key m)
4 x sata 6gb – s ports
usb
1 x usb 3.2 gen 1 (5g) header supports 2 additiónal usb 3.2 gen 1 ports
1 x usb 2.0 header supports 2 additiónal usb 2.0 ports
miscellaneous
1 x rgb header
1 x clear cmos header
1 x front panel audio header (aafp)
1 x com port header
1 x s – pdif out header
1 x speaker header
1 x spi tpm header (14 – 1pin)
1 x 10 – 1 pin system panel header
características especiales
asus 5x protection iii
– digi+ vrm
– languard
– overvoltage protectión
– safeslot core
– stainless – steel back i – o
asus q – design
– q – dimm
– q – led core
– q – slot
asus thermal solutión
– aluminum heatsink design
asus lighting control
– rgb header
funciónes de software
asus exclusive software
armoury crate
– fan xpert 2+
ai suite 3
– epu
– digi+ vrm
– pc cleaner
asus cpu – z
nortón 360 deluxe (60 days free trial)
winrar
uefi bios
asus ez diy
– asus crashfree bios 3
– asus ez flash 3
– asus uefi bios ez mode
bios
128 mb flash rom – uefi ami bios
manejabilidad
wol by pme – pxe
accesorios
cables
2 x sata 6gb – s cables
miscellaneous
1 x i – o shield
1 x m.2 anchor
documentatión
1 x user guide
sistema operativo
windows 11 – windows 10 64 – bit
factor de forma
micro – atx form factor
9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
